Grids in Tables

Overview

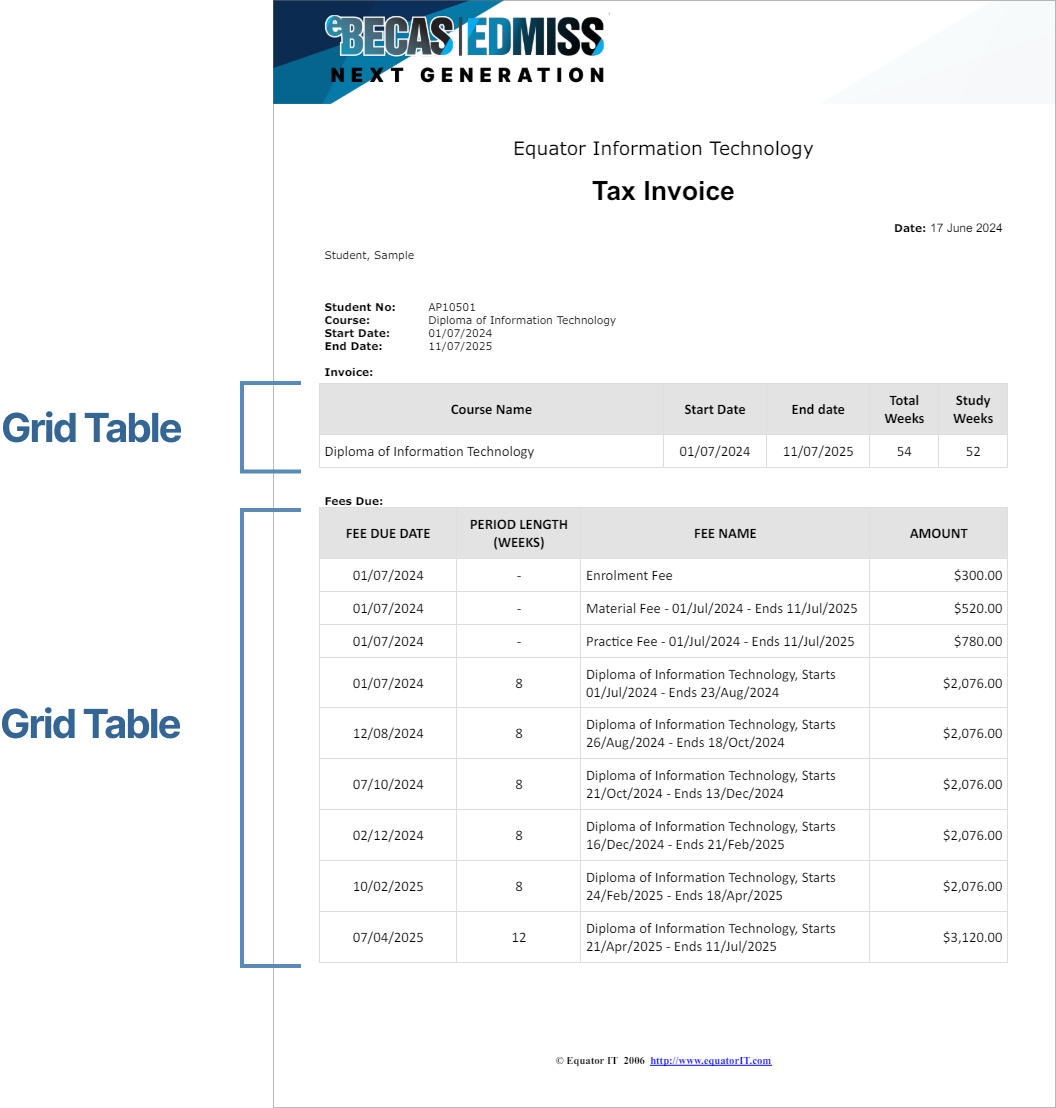

A Grid in a Table is a method to display a set of related records in a table (tabular) format in a template. this is the simplest, quickest, and most practical method to display structured data. It is particularly useful for presenting data sets such as Offer Items, Instalment Plans, etc, in a structured way.

Group 1 (2).png

How Grid in Tables Work

Grids in Tables uses a table to display data as rows. Each record in a data set, is added to the table as a new row.

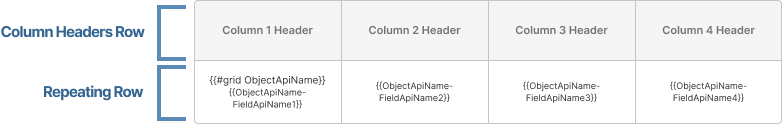

A Grid in a Table consists of two rows:

  1. Column Header Row: It’s used to define the headers for each column of the table. Each cell represents the header for each column and a column, represents a field on the record.

  2. Repeating Row: This row defines the dynamic content of the table

    • The first cell on this row must start with the helper {{#grid ObjectApiName}} to indicate it is a dynamic table.

    • Each cell (including the first one, after the #grid helper) contains a grid field bookmark corresponding to its column. During the merge process, these grid field bookmarks are replaced with their respective data.

Group 2.png

How to Insert Grid tables

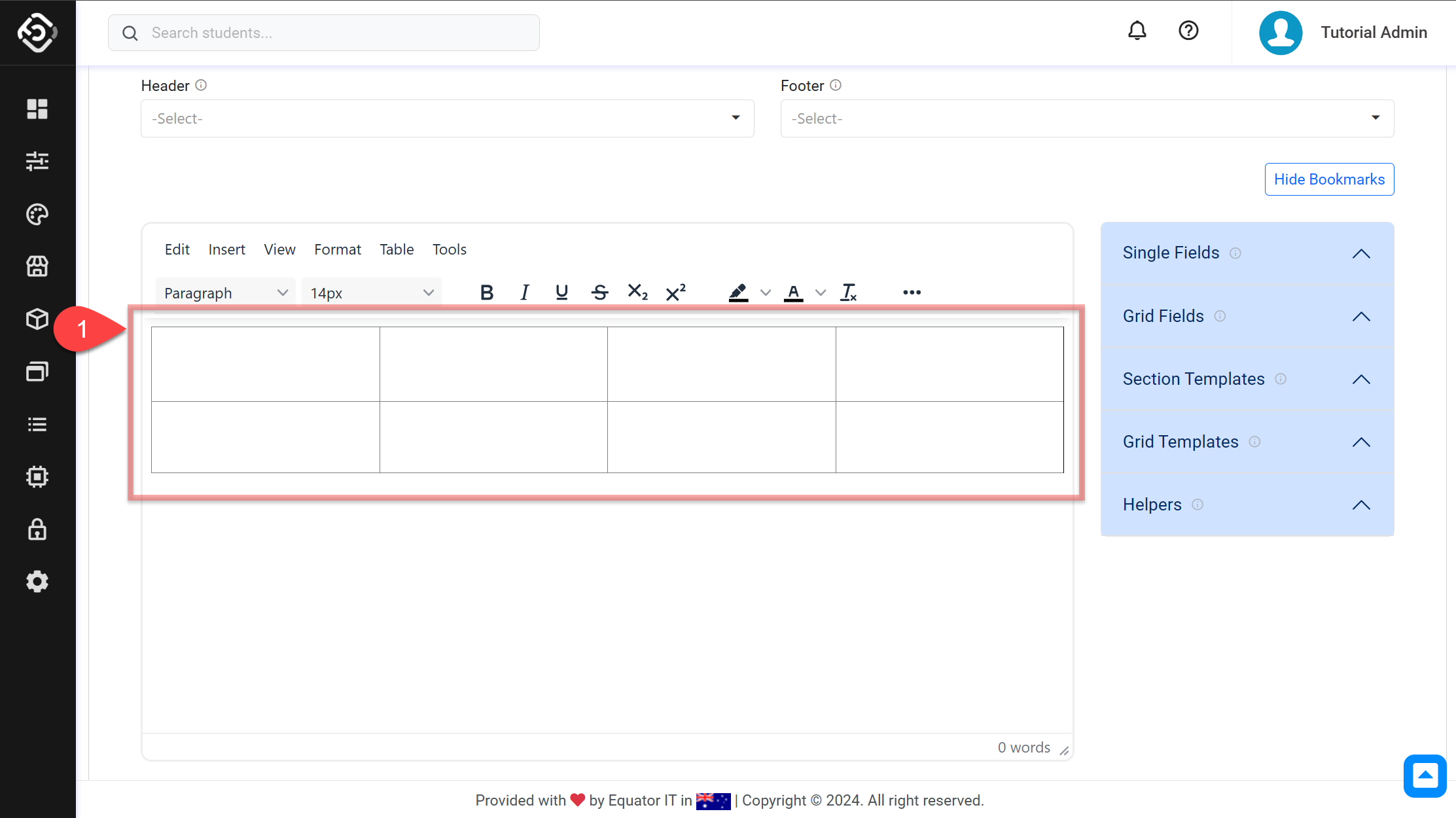

  1. First, you need to insert a table into your template. This table can have as many columns as you need, but it must have only two rows.

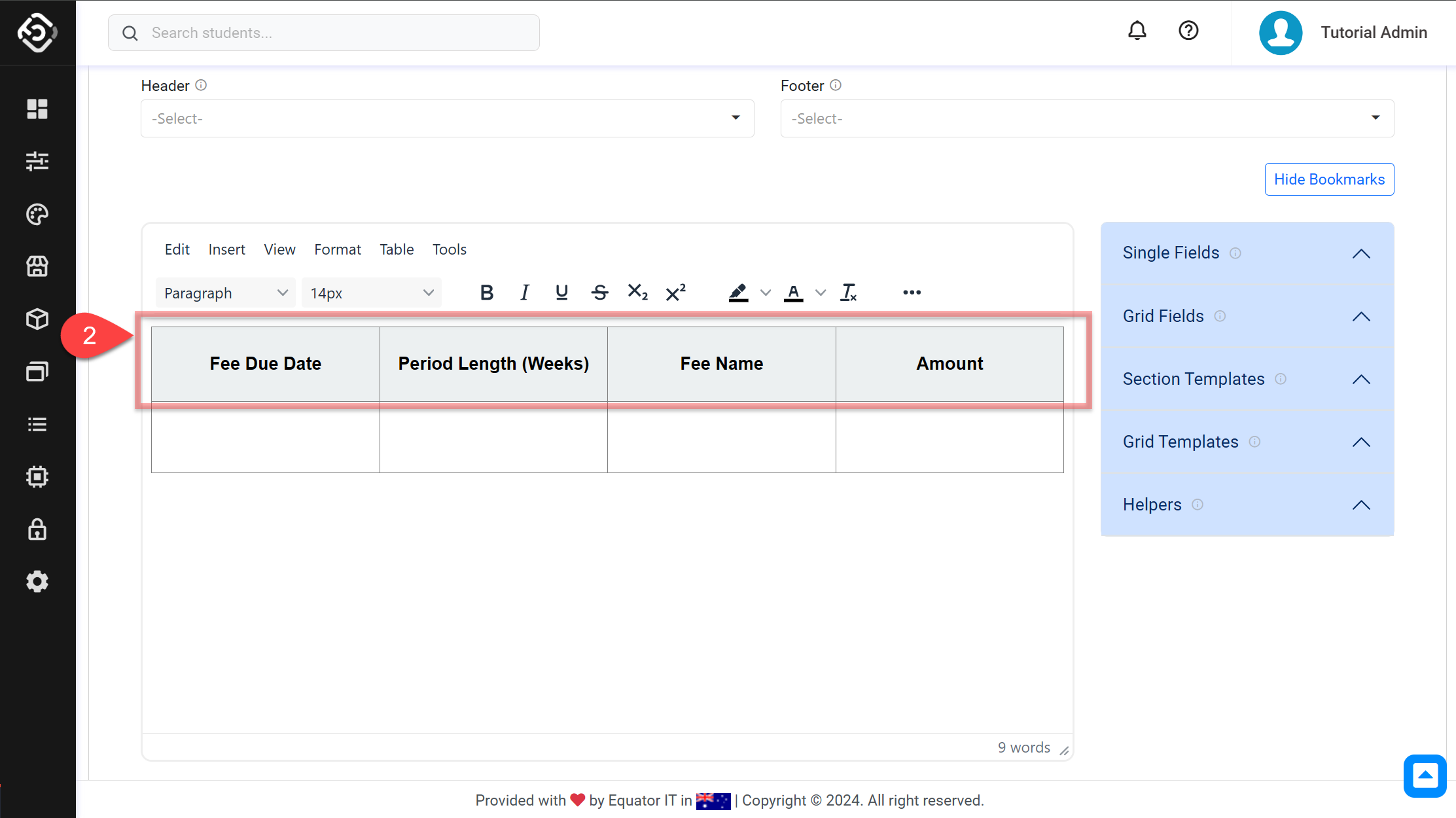

  2. The first row of the table is reserved for the headers of each column. These headers should indicate what kind of data each column represents.


  3. Declare the second row as a repeating row using the {{#grid }} helper and place a grid field bookmark in each cell.

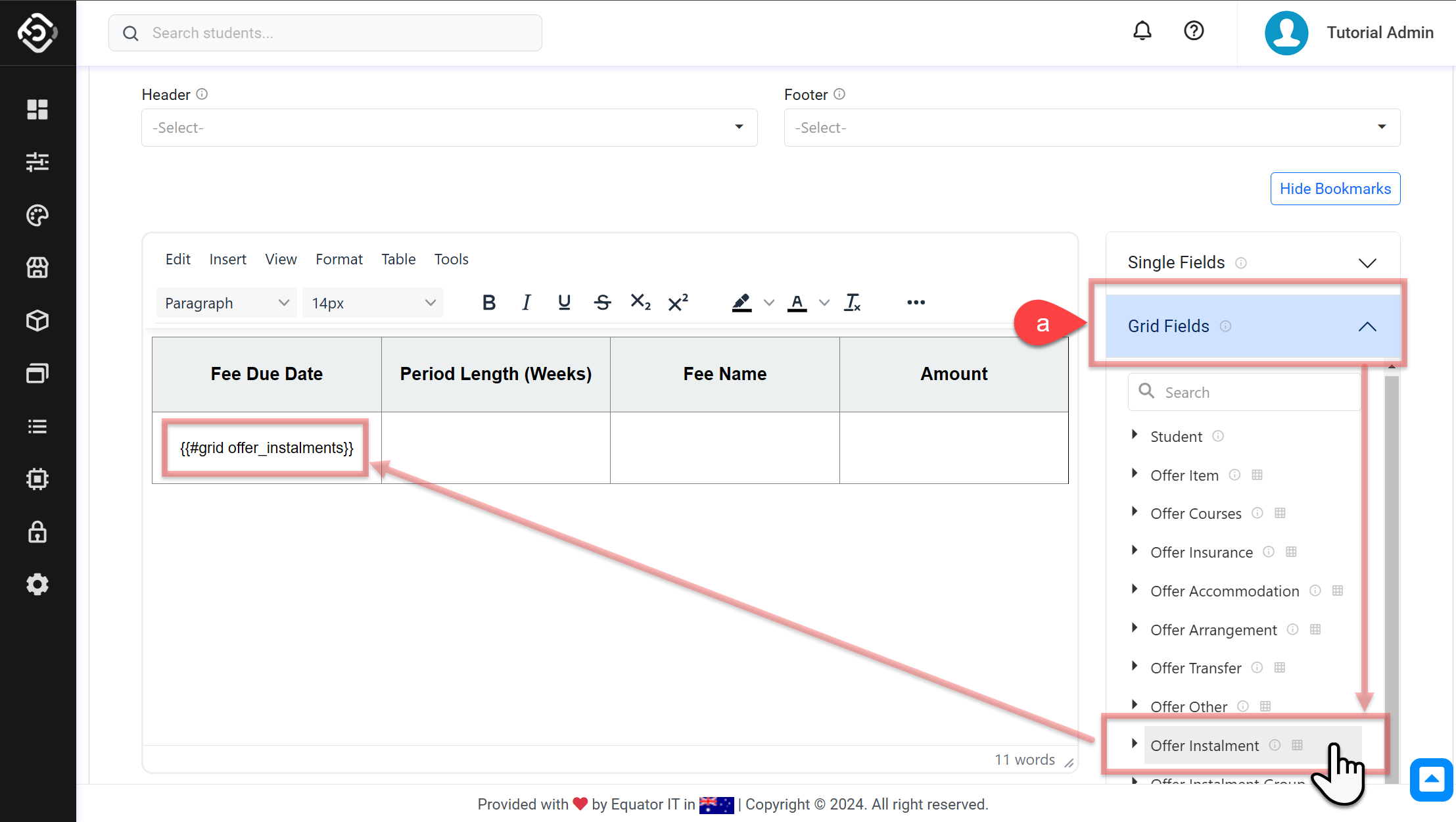

    1. The first cell in the second row declares the start of the grid using the syntax {{#grid ObjectApiName}}. You can easily insert it by clicking on the desired grid item on the Grid Fields section on the bookmarks menu. Grid items are indicated by a table icon (Snag_87ef3c7.png) next to their names.

      • ObjectApiName: This is the API name of the object that you want to iterate though. The records that the table will have will belong to this object.

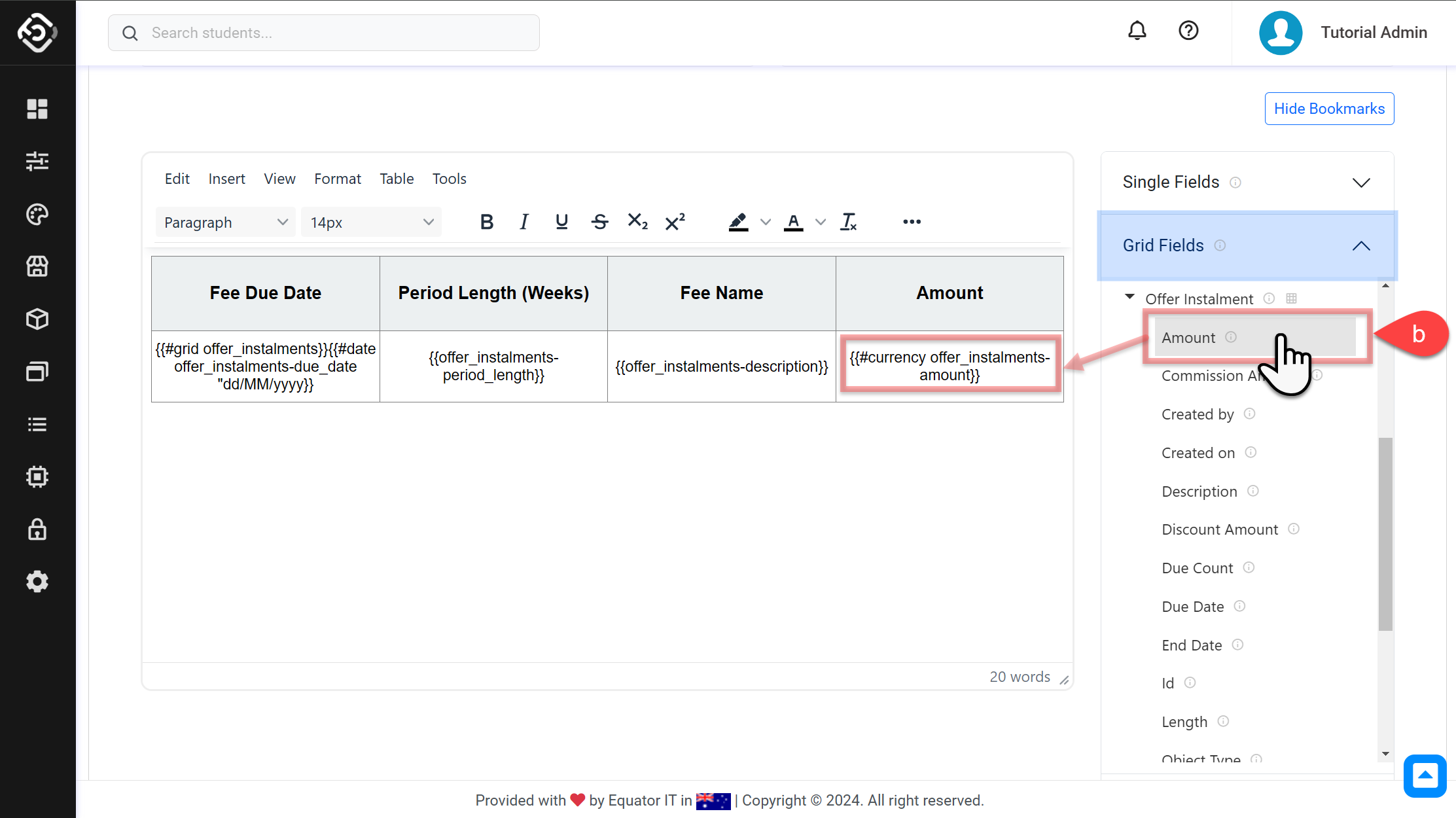

    2. Each cell in this row specifies a field bookmark using the syntax {{ObjectApiName-FieldApiName}}. Move the text cursor to each cell and find and click the appropriate Grid Field Bookmark for each column.

      • ObjectApiName-FieldApiName: These are the grid field or fields that will be inserted into the template by iterating through each record on the Object defined in the #grid helper. They should be placed on each cell.

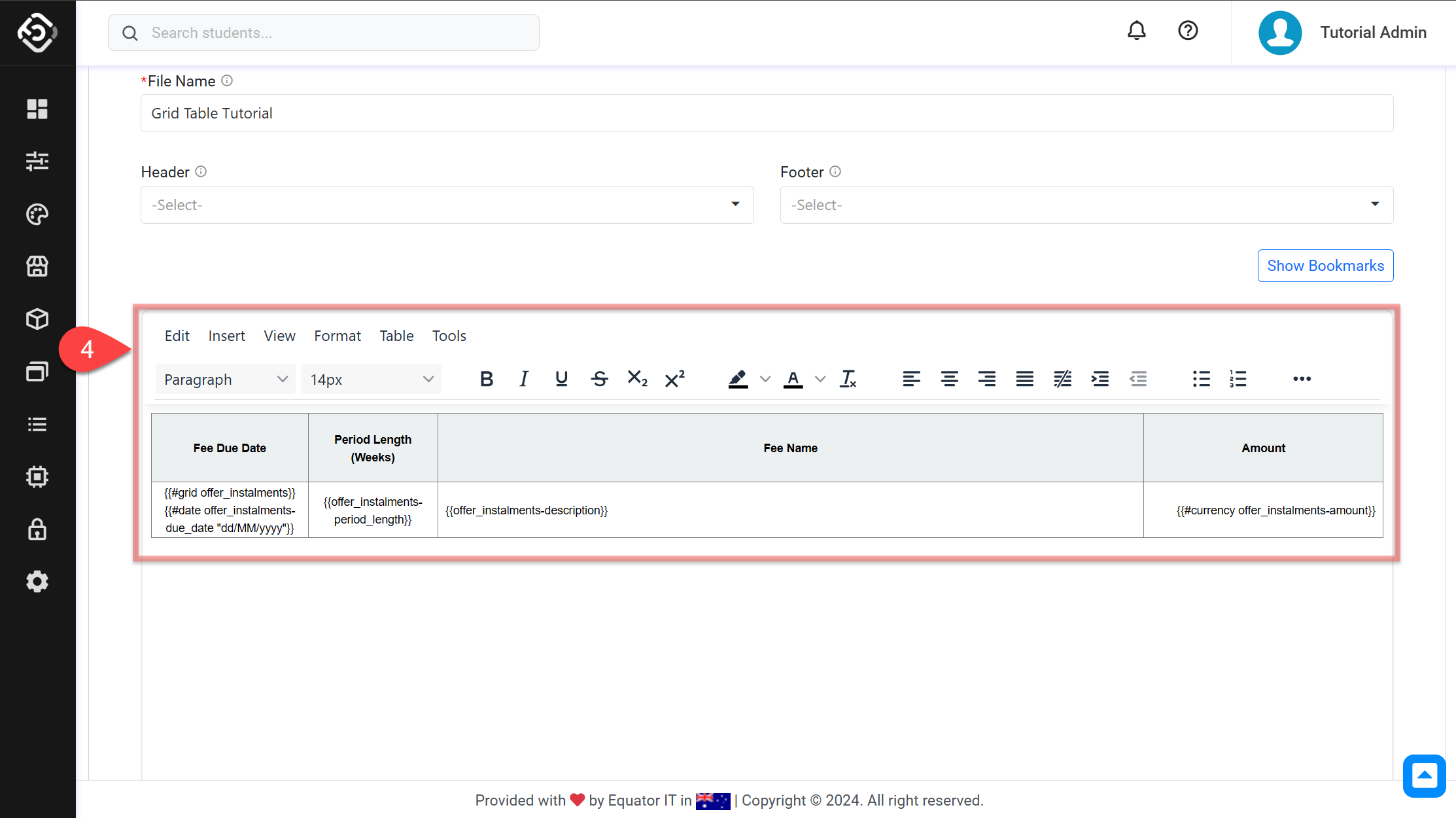

  4. Customise the table by applying the desired styles, such as text alignment and cell width.


Sort the Grid Table

ADVANCED

You can customise the sort order of a Grid Table by specifying a field to sort by, instead of using the grid’s default sort order. If your template uses a Grid Template with Grid Wrapper helper, refer to this article for instructions: Sort the Grid with Grid Wrapper

To sort in a Grid Table:

  1. Locate the first cell where {{#grid … }} is used.

  2. Inside the {{#grid …}} tag, insert sort immediately after the ObjectApiName.

  3. After sort, define the following parameters in order:

    • SortingCriteriaFieldApiName: The API name of the field used for sorting. This field must belong to the ObjectApiName defined in the grid.

    • SortingDirection: Determines the sort order. Use asc for ascending or desc for descending.

    • CriteriaType OPTIONAL: Specifies how to interpret the values in SortingCriteriaFieldApiName.

      • NUMBER: Interprets the values as numbers (e.g. 2, 1, 11, 10 will be sorted as 1, 2, 10, 11).

      • Not specified: If left out, values will be treated as text (e.g. 2, 1, 11, 10 will be sorted as 1, 10, 11, 2).

  4. For an example, see Example 3 in the Grid Table Examples section.


Grid Table Examples

Example 1 - Student Contact Confirmation

In the following example, we are creating a simple template with a table to list all the student contacts. As a student can have multiple contacts, using a Grid on a Table is the easiest option to achieve this.

Note on the second row, we have added the #grid helper with the ObjectApiName as:

CODE
{{#grid student_contacts}}

This part indicates, we are going to loop over all the records on the student_contacts object.

Then, we have added the following bookmarks on each column:

  • student_contacts-name This is the name for the Student Contact

  • student_contacts-mobile This is the mobile for Student Contact

As we are iterating over the student_contacts object, the table will have as many rows as contacts the student has.


Input

Hi, Student!

We’re sending this email to confirm your emergency contact.

Name

Mobile

{{#grid student_contacts}}
{{student_contacts-name}}

{{student_contacts-mobile}}

Please let us know, if there’s anything incorrect.

Best Regards,


Output

Hi, Student!
We’re sending this email to confirm your emergency contact.

Name

Mobile

John Doe

0412123456

Jane Doe

0498987654

Ryan Doe

0411222333

Please let us know, if there’s anything incorrect.

Best Regards,


Example 2 - Enrolment Warnings

The following example displays the all the warnings issued in an enrolment.

Note the definition of the #grid helper to define the object that we are going to iterate over:

CODE
{{#grid enrolment_warnings}}

Input

Dear {{students-first_name}} {{students-last_name}},

The below is the warnings that issued to your enrolment up to {{#now "dd MMMM yyyy"}}.

Category

Entry Date

Who

Current Attendance

Overall Attendance

{{#grid enrolment_warnings}}{{enrolment_warnings-warning_category}}

{{#date enrolment_warnings-entry_date "dd/MM/yyyy"}}

{{enrolment_warnings-created_by}}

{{enrolment_warnings-current_attendance}}%

{{enrolment_warnings-overall_attendance}}%

If you have any further questions or need clarification, feel free to reach out.

Best Regards,


Output

Dear Tutorial Student,

The below is the warnings that issued to your enrolment up to 29 May 2024.

Category

Entry Date

Who

Current Attendance

Overall Attendance

First Warning Letter - CP/Attendance

12/05/2024

Ryan Lee

96%

98%

Second Warning Letter - CP/Attendance

23/05/2024

Stewart Sutton

92%

97%

Intention to Report CP/Attendance

28/05/2024

Tutorial Teacher

83%

94%

If you have any further questions or need clarification, feel free to reach out.

Best Regards,

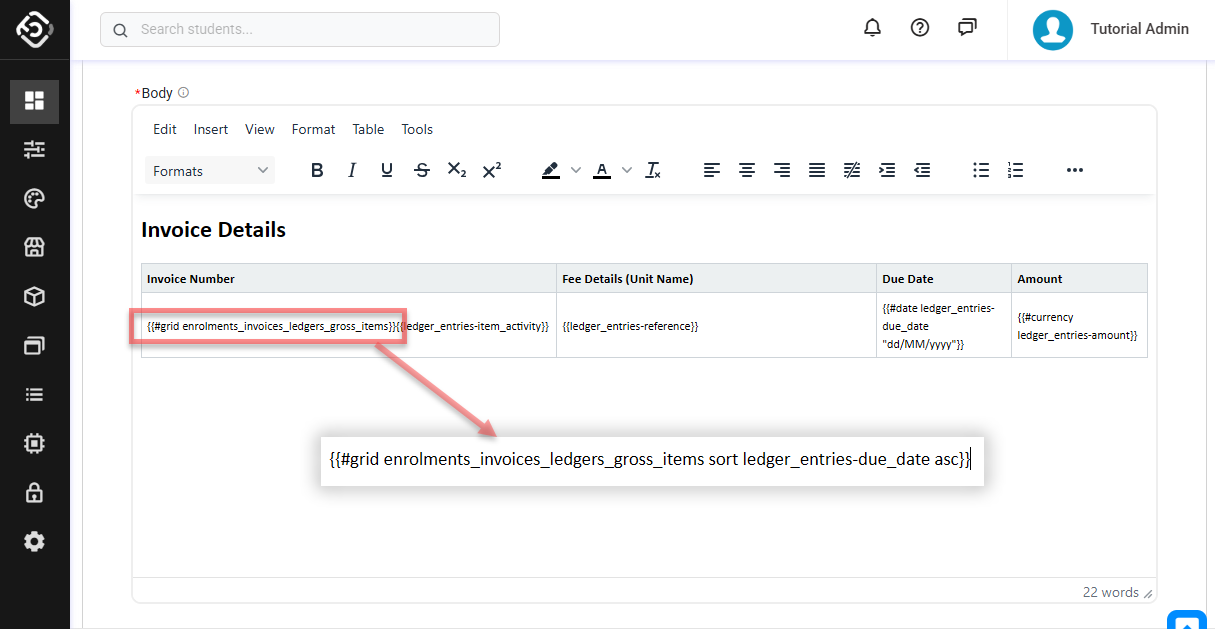

Example 3 - Invoice Details Sorted by Due Dates

The following example displays the all the invoices with invoice items sorted by Due Dates instead of the system default - Invoice Number.

CODE
{{#grid enrolments_invoices_ledgers_gross_items sort ledger_entries-due_date asc}}

Invoice Number

Details

Due Date

Amount

Invoice 1550

Tuition 1

12/05/2024

$1,200

Invoice 1551

Tuition 2

23/05/2024

$1,200

Invoice 1552

Tuition 3

28/05/2024

$1,200

Invoice 1553

Tuition 4

31/05/2024

$500

CODE
{{#grid enrolments_invoices_ledgers_gross_items sort ledger_entries-due_date desc}}

Invoice Number

Details

Due Date

Amount

Invoice 1553

Tuition 4

31/05/2024

$500

Invoice 1552

Tuition 3

28/05/2024

$1,200

Invoice 1551

Tuition 2

23/05/2024

$1,200

Invoice 1550

Tuition 1

12/05/2024

$1,200


While Grids in Tables can cover most use cases for displaying dynamic tables, Grid Templates offer more flexibility and customization but requires a more advanced knowledge of the system and basic knowledge on the HTML language. Learn more about Grid Templates.
